SRNE ASF Series 48V 8KW 120v/240v Split phase solar off-grid inverter -Koodsun
SRNE ASF Series 48V 8KW 120v/240v Split phase solar off-grid inverter -Koodsun

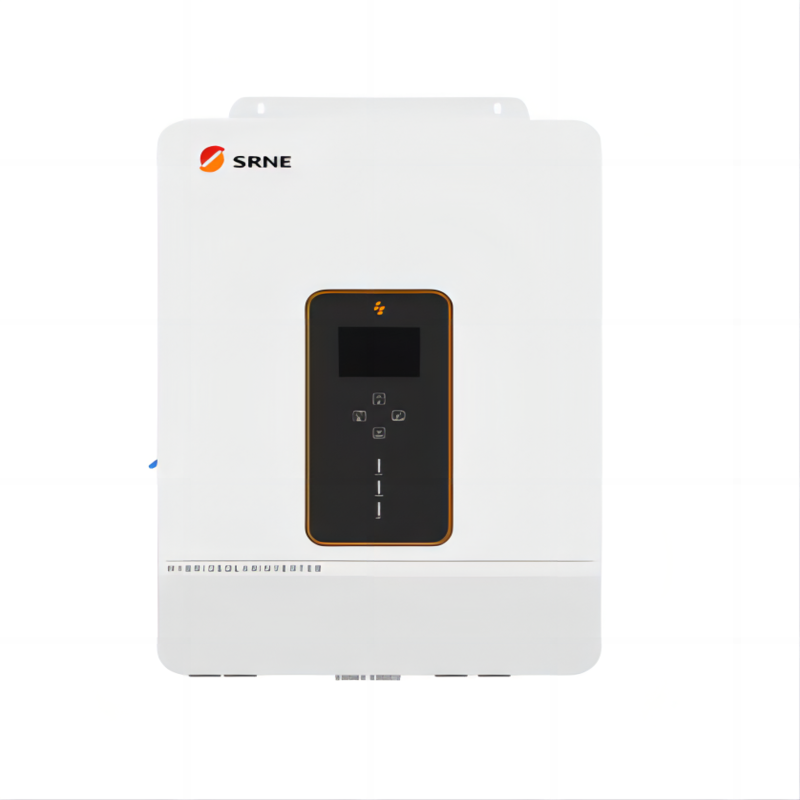

SRNE ASF Series 48V 8KW 120v/240v Split phase solar off-grid inverter

ASF4880U180-H



Place of Origin
China



Brand Name
SRNE



Model Number
ASF4880U180-H



Input Voltage
90-270Vac



Output Voltage
240 V



Output Current
100A



Output Frequency
50/60 Hz



Size
620*435*130mm



Certificate
CE



Warranty
10 years



Weight
20kg

Datasheet



Model Specifications
ASF4880U180-H
Battery type
Li-ion / Lead-Acid / User Defined
Rated Battery Input Witage
48Vdc
Hybrid Charging Maxi mum Charging Current
180A
Maximum PV Open-circuit Voltage
11000W
Maximum PV Charging Current
200A
Mains Maximum Charging Current
100A
Rated Input Voltage
90-140Vac
Mains Charging Efficiency
95%
Maximum Bypass Overload Current
63A
Output Voltage Waveform
Pure Sine Wave
Rated Output Voltage (Vac)
120/240Vac
Rated Output Power(W)
8000W
Peak Power
16000W
On-load Motor Capacity
5HP
Output Frequency Range(Hz)
50/60Hz
Maximum Efficiency
92%
Dimensions
620*435*130mm
Warranty
10 years

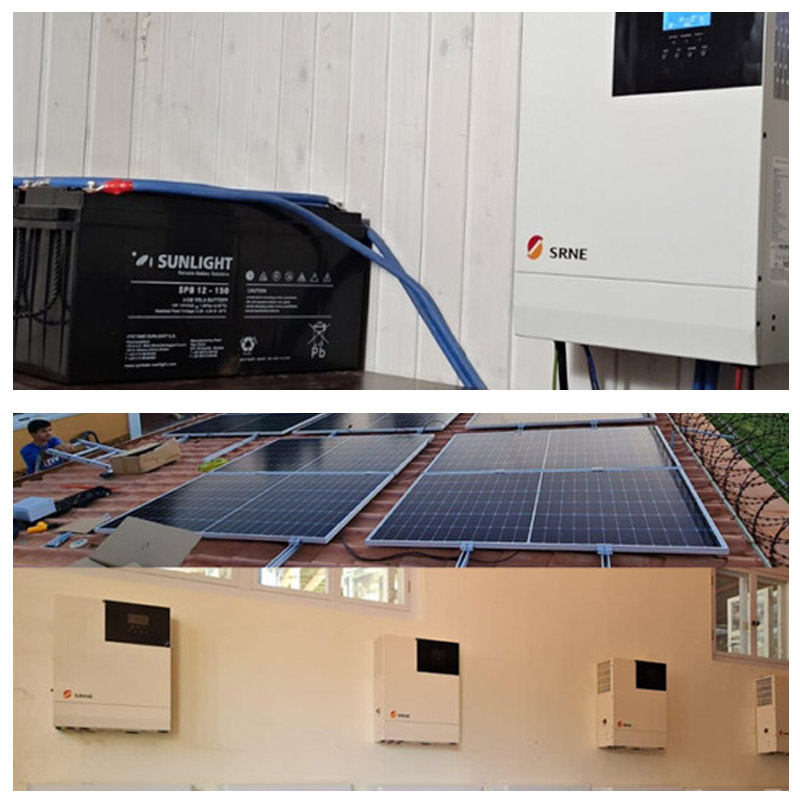

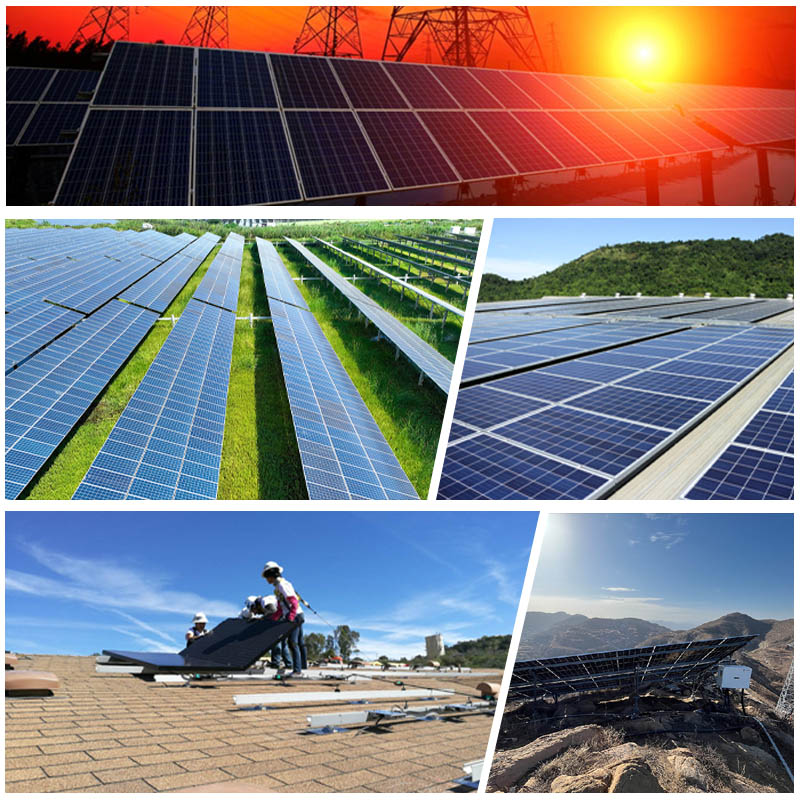

Project
