Brand |
Koodsun |
Product Origin | China |
Shipping Port | Ningbo, Shanghai, Shenzhen |
Lead time | 7-15days |
Type | Off Hybrid |
Output voltage | 110V-240V |
Item No | 1 Phase, 2 Phase |
Lead time | 10days |
Warranty | 3 Years |
Product Description

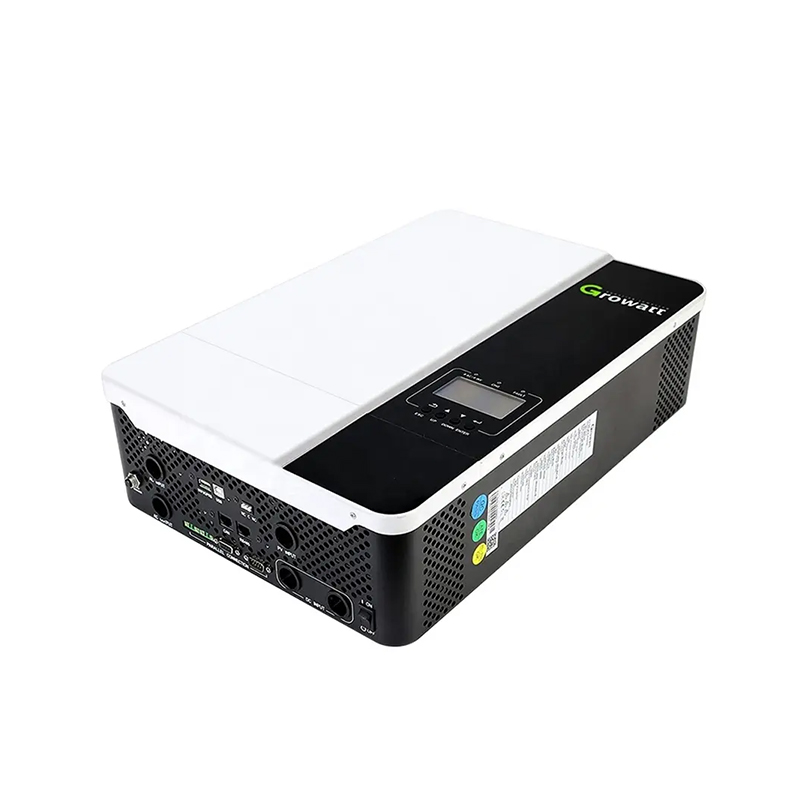

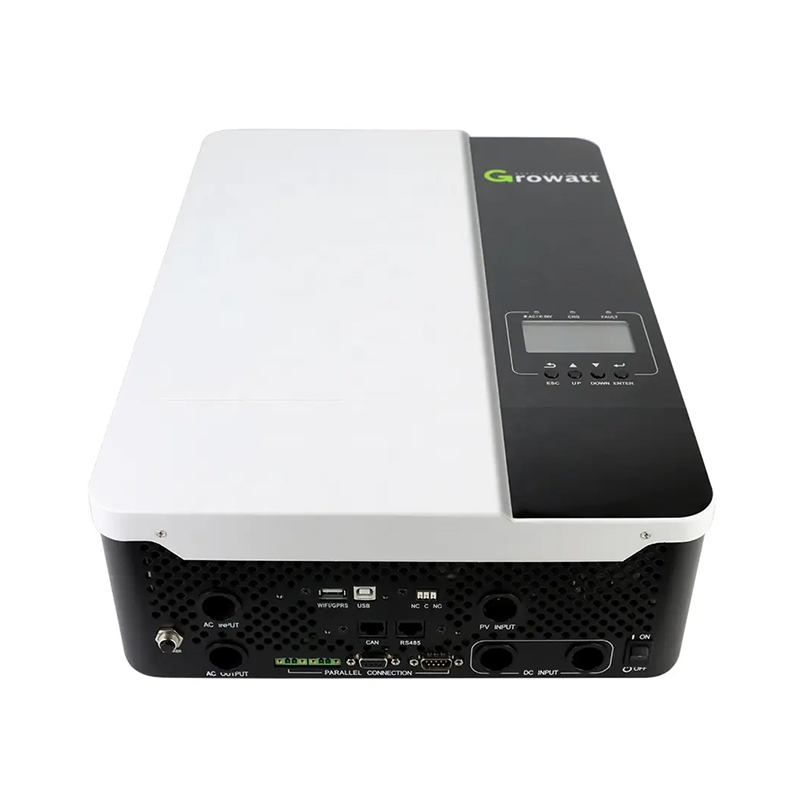

Growatt SPF 3500/ 5000 ES is used in off grid and compatible with batteries

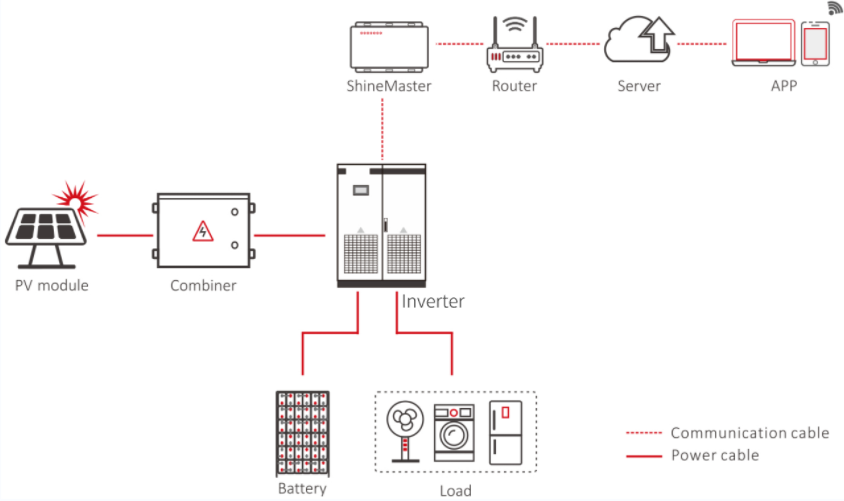

Working Diagrams
Datasheets
Datasheet | SPF 3500 ES | SPF 5000 ES |
Battery Voltage | 48VDC | |
Battery Type |
Lithium /Lead Acid | |
Parallel Capacity | Yes, 6 units maximum | |
AC Voltage | 230VAC ± 5% @ 50/60Hz | |
SOLAR CHARGER | ||
MPPT Range | 120VDC ~ 430VDC | 120VDC ~ 430VDC |
Max PV Array Input Voltage | 450VDC | 450VDC |
Max Solar Charge Current | 80A | 100A |
AC CHARGER | ||
Charge Current | 60A | 80A |
Frequency | 50Hz/60Hz (Auto sensing) | |
Dimension | 330/485/135mm | 330/485/135mm |
Net Weight | 11.5kgs | 12kgs |

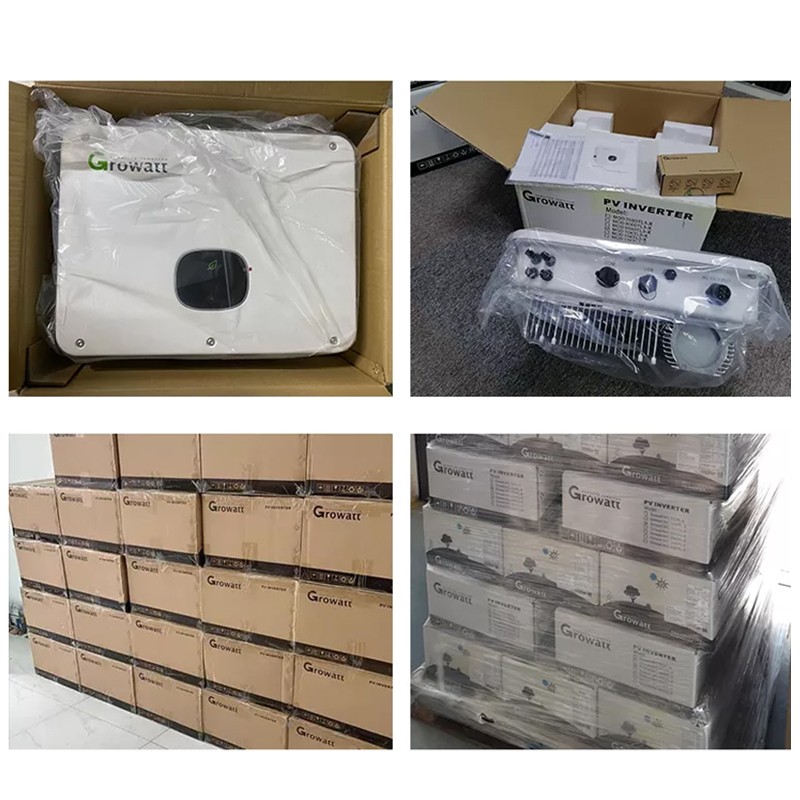

Packing
