Datasheet

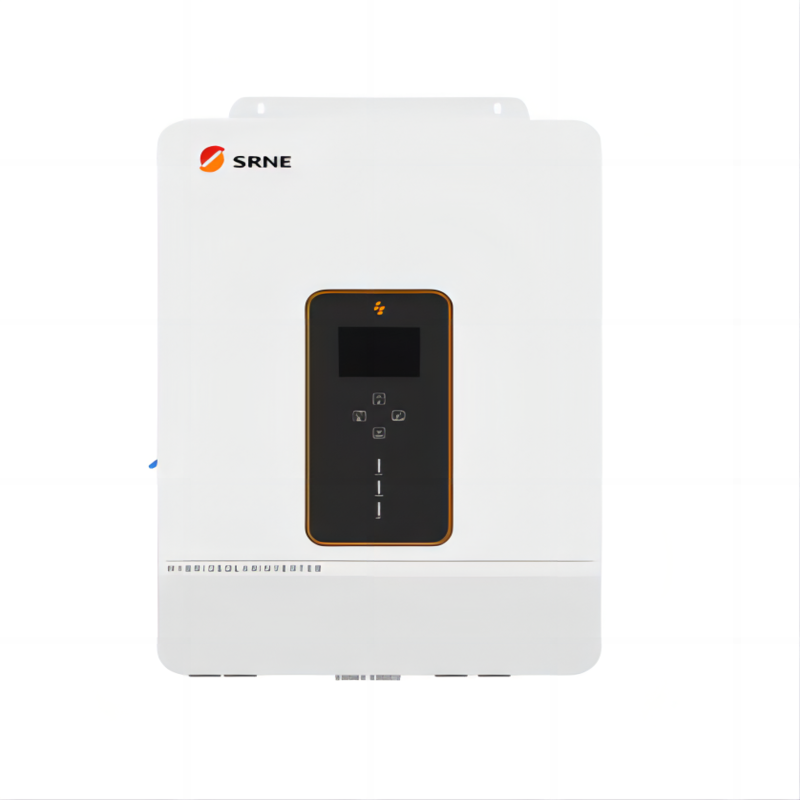

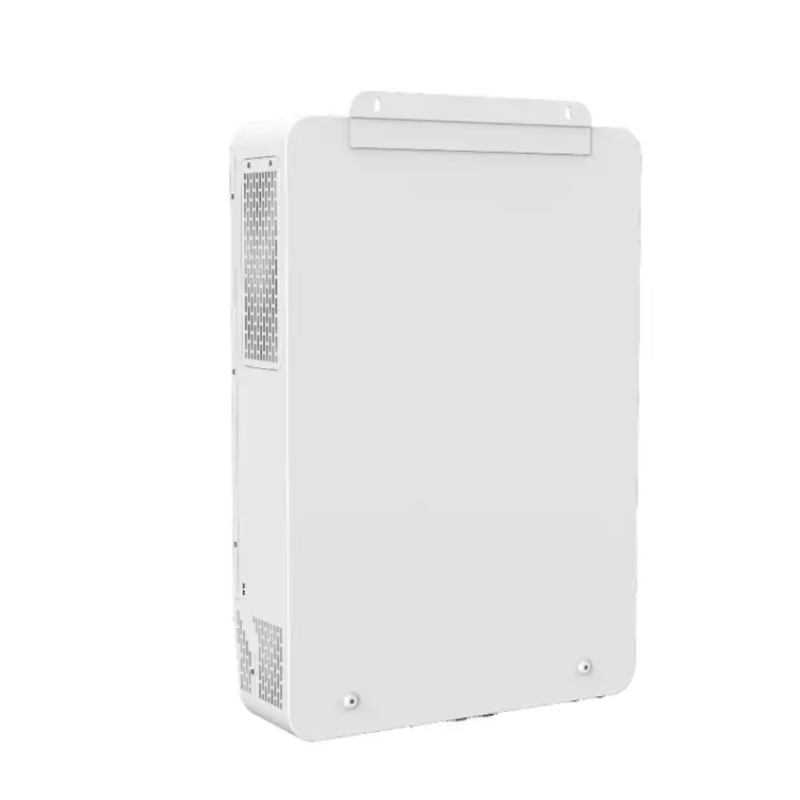

MODEL
|
ASF4880S180-H
|
ASF48100S200-H
|
INVERTER OUTPUT
|
Rated Output Power
|
8,000W
|
10,000W
|
Max.Peak Power
|
16,000W
|
20,000W
|
Rated Output Voltage
|
230Vac(L1/N/PE single-phase)
|
Load Capacity of Motors
|
5HP
|
6HP
|
Rated AC Frequency
|
50/60Hz
|
Waveform
|
Pure Sine Wave
|
Switch Time
|
10ms(typical)
|
BATTERY
|
Battery Type
|
Li-ion/ Lead-Acid/User Defined
|
Rated Battery Voltage
|
48Vdc
|
Voltage Range
|
40-60Vdc
|
Max.MPPT Charging Current
|
200A
|
Max.Mains/Generator Charging Current
|
100A
|
Max.Hybrid Charging Current
|
180A
|
200A
|
PV INPUT
|
Num.of MPP Trackers
|
2
|
Max.PV array power
|
11,000W
|
Max.input current
|
22/22A
|
Max.Voltage of Open Circuit
|
500Vdc
|
MPPT Voltage Range
|
125-425Vdc
|
MAINS / GENERATOR INPUT
|
Input Voltage Range
|
90-270Vac
|
Frequency Range
|
50/60Hz
|
Bypass Overload Current
|
32A/63A
|
EFFICIENCY
|
MPPT Tracking Efficiency
|
99.90%
|
Max. Battery Inverter Efficiency
|
92%
|
GENERAL
|
Dimensions
|
620*435*130mm
|
Weight
|
20kg
|
21kg
|
Protection Degree
|
IP20,Indoor Only
|
Operating Temperature Range
|
-15~55℃,>45℃ derated
|
Noise
|
<60dB
|
Cooling Method
|
Internal Fan
|
Warranty
|
2 Years
|
COMMUNICATION
|
Embedded Interfaces
|
RS485/ CAN / USB /Dry contact
|
External Modules (Optional)
|
Wi-Fi/ GPRS
|
CERTIFICATION
|
Safety
|
IEC62109-1,IEC62109-2
|
EMC
|
EN61000-6-1,EN61000-6-3,FCC 15 class B
|
RoHS
|
Yes
|

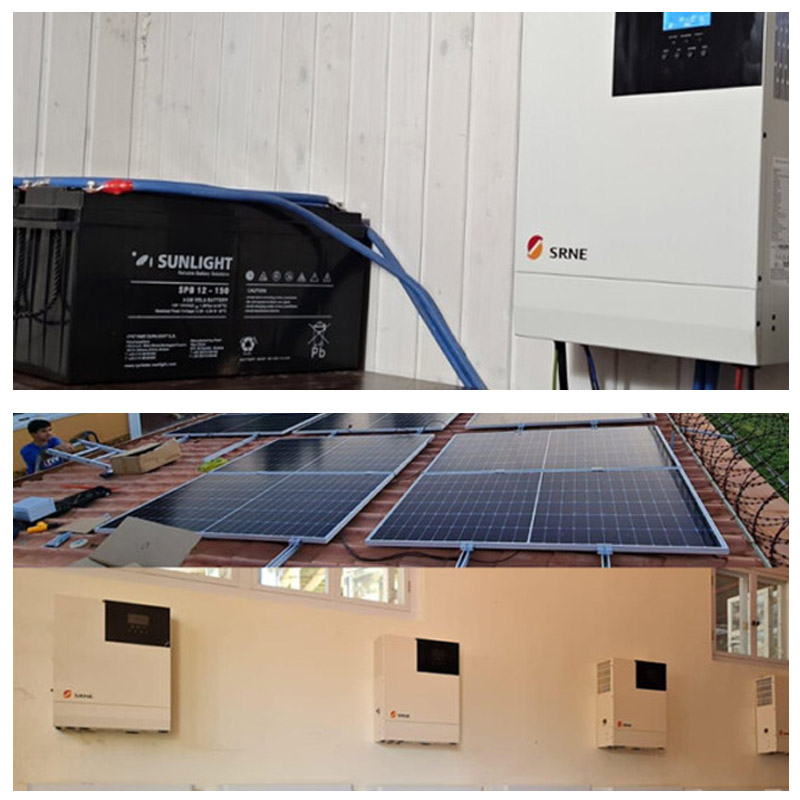

Project
