Datasheet

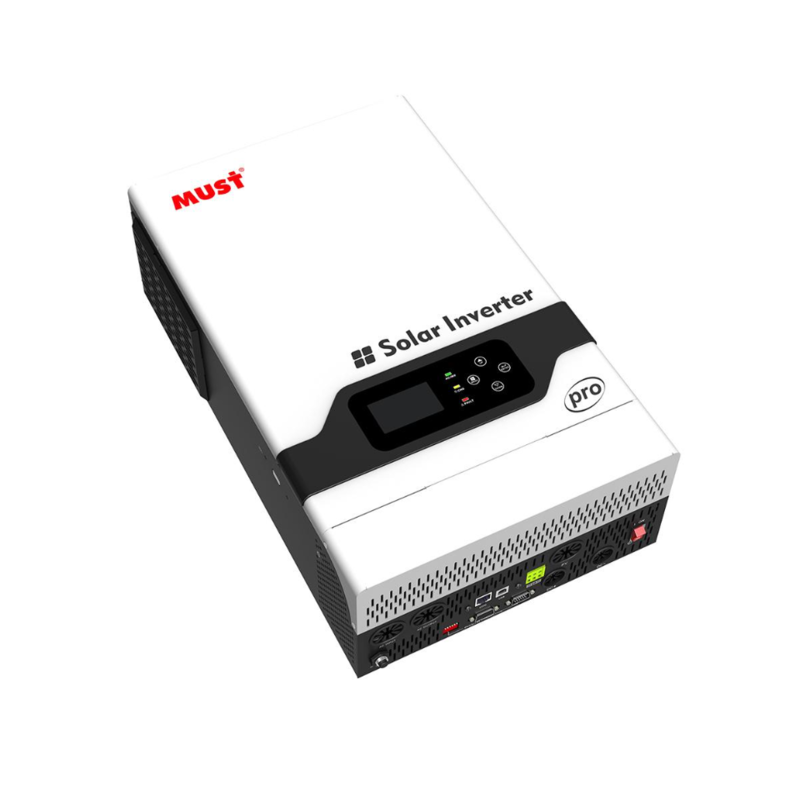

MODEL
|
PV18-1012 VPK
|
PV18-2024 VPK
|
PV18-3024 VPK
|
PV18-4048 VPK
|
PV18-5048 VPK
|
Nominal Battery System Voltage
|
12VDC
|
24VDC
|
48VDC
|
INVERTER OUTPUT
|
Rated Power
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
Surge Power
|
2000W
|
4000W
|
6000W
|
8000W
|
10000W
|
Waveform
|
Pure sine wave
|
AC Voltage Regulation (Batt.Mode)
|
(220VAC ~ 240VAC)±5%
|
Inverter Efficiency (Peak)
|
93%
|
Transfer Time
|
10ms(For Personal Computers)20ms(For Home Appliance)
|
AC INPUT
|
Voltage
|
230VAC
|
Selectable Voltage Range
|
170~280VAC(For Personal Computers)、90~280VAC(For Home Appliances)、184~253VAC(VDE4105)
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
BATTERY
|
Normal voltage
|
12VDC
|
24VDC
|
48VDC
|
Floating Charge Voltage
|
13.5VDC
|
27VDC
|
54VDC
|
Overcharge Protection
|
15.5VDC
|
31VDC
|
60VDC
|
SOLAR CHARGER&AC CHARGER
|
Maximum PV Array Open Circuit Voltage
|
55VDC
|
70VDC
|
105VDC
|
Standby Power Consumption
|
2W
|
2W
|
2W
|
(PWM) Maximum Solar Charge Current
|
50A
|
50A
|
60A
|
Maximum AC Charge Current
|
10A or 20A
|
20A or 30A
|
60A
|
Maximum Charge Current
|
70A
|
80A
|
120A
|
MECHANICAL SPECIFICATION
|
Machine Dimensions (W*H*D)(mm)
|
225*355*92
|
272*355*100
|
297.5*468*125
|
Package Dimensions (W*H*D)(mm)
|
405*373*205
|
465*373*231
|
618*415*261
|
Net Weight(kg)
|
4
|
7.8
|
12
|
Gross Weight(kg)
|
6
|
10.3
|
13.5
|
OTHER
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
Operating Temperature
|
0°C -55°C
|
Storage Temperature
|
-15°C -60°C
|
