Datasheet
|
SPF 6000 ES Plus
|
Battery Voltage
|
48VDC
|
Battery Type
|
Lithium/Lead-acid
|
Inverter Output
|
Rated Power
|
6000VA/6000W
|
Parallel Capability
|
Yes, 6 units maximum
|
AC Voltage Regulation(Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
Surge Power
|
12000VA
|
Efficiency (Peak)
|
93%
|
Waveform
|
Pure sine wave
|
Transfer Time
|
10ms typical,20ms Max
|
Solar Charger
|
Maximum PV Array Power
|
8000W
|
MPPT Range @ Operating Voltage
|
120VDC ~ 450VDC
|
Number of Independent MPP Trackers/ Strings Per MPP Tracker
|
2/1
|
Max. input current per MPP tracker
|
16A
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
Maximum Solar Charge Current
|
100A
|
AC Charger
|
Charge Current
|
80A
|
AC Input Voltage
|
230VAC
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
Physical
|
Protection Degree
|
IP20
|
Dimension (W/H/D)
|
460/395/132mm
|
Net Weight (kgs)
|
13.5
|
Operating Environment
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
Altitude
|
<2000m
|
Operating Temperature
|
0°C - 55°C
|
Storage Temperature
|
-15°C - 60°C
|

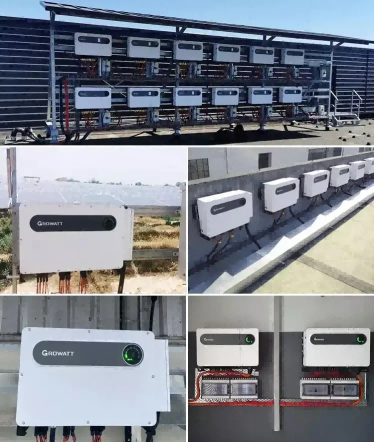

Project
