Brand:
DEYE OR OEM SERVICEProduct Origin:
ChinaShipping Port:
Ningbo, Shanghai, ShenzhenType:
HybridOutput Voltage :
360-440V 60hzItem No:
3PhaseVoltage :
DC 48VCertification:
CE, TUV, IEC, UL, VDE,,,,EtcLead Time:
10-20daysWarranty:

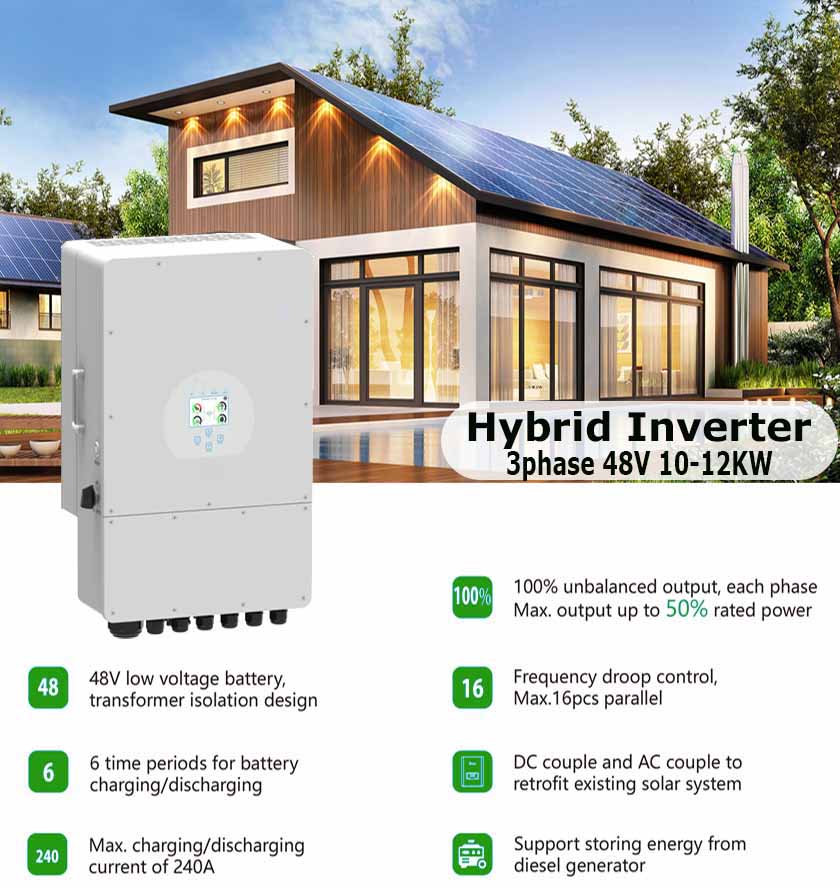

10 YearsDEYE Low voltage three-phase energy storage inverter 8kw 10kw 12kw for home use
Specifications of 48V 3phase 10KW 12KW Hybrid Inverter Charger
| Model | 10KW-HY-48 | 12KW-HY-48 |
| Battery | ||
| Battery Type | lithium ion/lead acid battery | |
| Battery Voltage Range | 40-60V | |
| MAX Charging Current | 210A | 240A |
| MAX Discharger Current | 210A | 240A |
| Charging Curve | 3Stages/Equalization | |
| External Temperature Sensor | YES | YES |
| Charging strategy for Lithium battery | Self adaptation to BMS | |
| PV Input Data | ||
| MAX PV Input Power | 13000W | 15600W |
| MAX PV Input Voltage | 800VDC | |
| MPPT Voltage Range | 200-650VDC | |
| PV Input Current | 26A+13A | 26A+13A |
| NO. of MPPT Trackers | 2 | 2 |
| No. of PV Strings per MPPT | 2+1 | 2+1 |
| AC Output Data | ||
| Rated AC Output Power and UPS power | 10000W | 12000W |
| MAX AC Output Power | 11000W | 13200W |
| Peak Power of OFF GRID | 2TIMES of Rated Power, 10S. | |
| AC Output Rated Current | 15A | 18A |
| Max. Continuous AC Passthrough (A) | 50A | 50A |
| Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | 50/60Hz; 230/400Vac (Three phase) |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) | THD<3% (Linear load<1.5%) |
| Efficiency | ||
| MAX Efficiency | 97.6% | 97.6% |
| MPPT Efficiency | 99.9% | 99.9% |
| Protection | ||
| PV Input Lightning Protection | Integrated | Integrated |
| Anti-islanding Protection | Integrated | Integrated |
| PV String Input Reverse Polarity Protection | Integrated | Integrated |
| Output Over Current Protection | Integrated | Integrated |
| Output Over Voltage Protection | Integrated | Integrated |
| Surge protection | DC Type II / AC Type II | DC Type II / AC Type II |
| Certiffcations and Standards | ||
| Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 |
| Safety EMC/Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 |
Hybrid grid inverter is a key part of the energy storage solar system, which converts the direct current of solar modules into alternating current.
The hybrid network energy storage inverter has its own charger, which can be directly connected to lead-acid batteries and lithium iron phosphate batteries.
Inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 120v / 240v 60hz; and three-phase 480v.One stop solution for solar power system.
For more information, please feel free to contact our team
Email: steve@koodsun.com
Whatsapp&Wechat: +86 13966581702
Power: 3KW/4KW/5KW/6KW/7KW/8KW/9KW/10KW/11KW/12KW/13KW/15KW MPPT Voltage Range: 140V-1000V Size: 425/387/147mm or 425/387/178mm Lead time: About 10 days Payment: T/T Warranty: 5/10 Years
