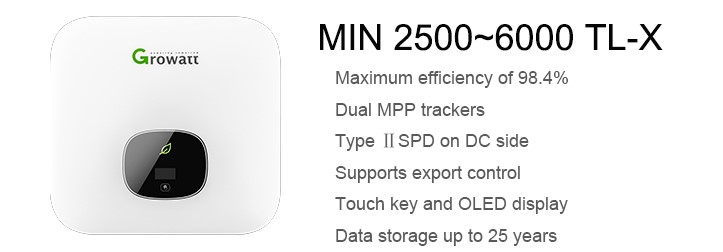

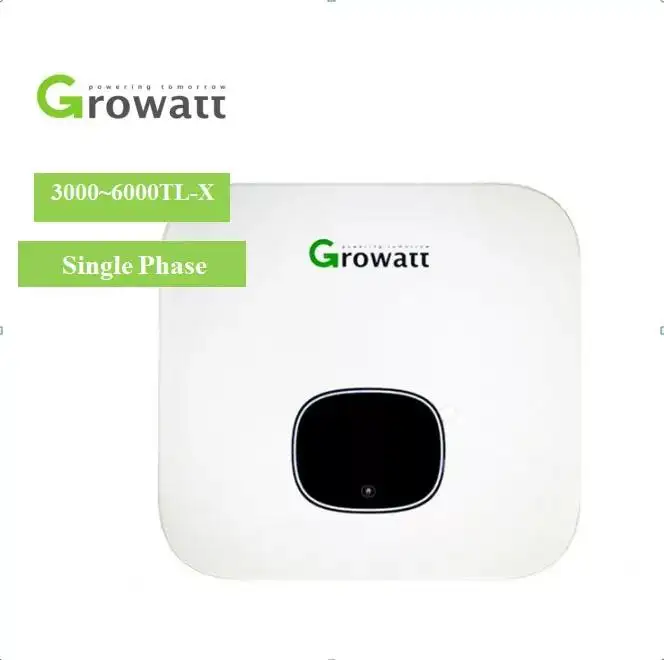

Growatt MIN 2500~6000 TL-X 2500W 3000W 3600W 4200W 4600W 5000W 6000W On Grid Solar Inverter

Brand Name
Growatt
Model Number
MIN 2500~6000 TL-X
Input Voltage
360V
Output Voltage
230V (180-280V)
Output Current
11.3A/13.6A/16A/19A/20.9A/22.7A/27.2A
Output Frequency
50Hz/60Hz
Inquire Now

Product Description





Datasheet
MIN 2500TL-X
MIN 3000TL-X
MIN 3600TL-X
MIN 4200TL-X
MIN 4600TL-X
MIN 5000TL-X
MIN 6000TL-X
Input data (DC)
Max. recommended PV power(for module STC)
3500W
4200W
5040W
5880W
6440W
7000W
8100W
Max. DC voltage
500V
500V
500V
550V
550V
550V
550V
Start voltage
100V
Nominal voltage
360V
MPP voltage range
80V-500V
80V-500V
80V-550V
80V-550V
80V-550V
80V-550V
80V-550V
No. of MPP trackers
2
No. of PV strings per MPP tracker
1
Max. input current per MPP tracker
13.5A *
Max. short-circuit current per MPP tracker
16.9A
Output data (AC)
AC nominal power
2500W
3000W
3600W
4200W
4600W
5000W
6000W
Max. AC apparent power
2500VA
3000VA
3600VA
4200VA
4600VA
5000VA
6000VA
Nominal AC voltage(range*)
230V (180-280V)
AC grid frequency(range*)
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
11.3A
13.6A
16A
19A
20.9A
22.7A
27.2A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
Single phase
Efficiency
Max.efficiency
98.2%
98.2%
98.2%
98.4%
98.4%
98.4%
98.4%
European efficiency
97.1%
97.1%
97.2%
97.5%
97.5%
97.5%
97.5%
MPPT efficiency
99.9%
Protection devices
DC reverse polarity protection
Yes
DC switch
Yes
AC/DC surge protection
Type III / Type III
Insulation resistance monitoring
Yes
AC short-circuit protection
Yes
Ground fault monitoring
Yes
Grid monitoring
Yes
Anti-islanding protection
Yes
Residual-current monitoring unit
Yes
AFCI protection
Optional
General data
Dimensions (W / H / D)
375/350/160mm
Weight
10.8kg
Operating temperature range
–25°C ... +60°C
Noise emission (typical)
≤35 dB(A)
Nighttime power consumption
< 1W
Topology
Transformerless
Cooling
Natural convection
Protection degree
IP65
Relative humidity
0-100%
Altitude
4000m
DC connection
H4/MC4(Optional)
AC connection
Connector
Display
OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN
Yes/Yes/Optional/Optional/Optional /Optional
Warranty: 5 years / 10 years
Yes /Optional
CE, IEC62109, VDE0126-1-1, AS4777, AS/NZS 3100, VDE-AR-N4105, CQC, IEC61683, IEC60068, IEC61727, IEC62116, INMETRO

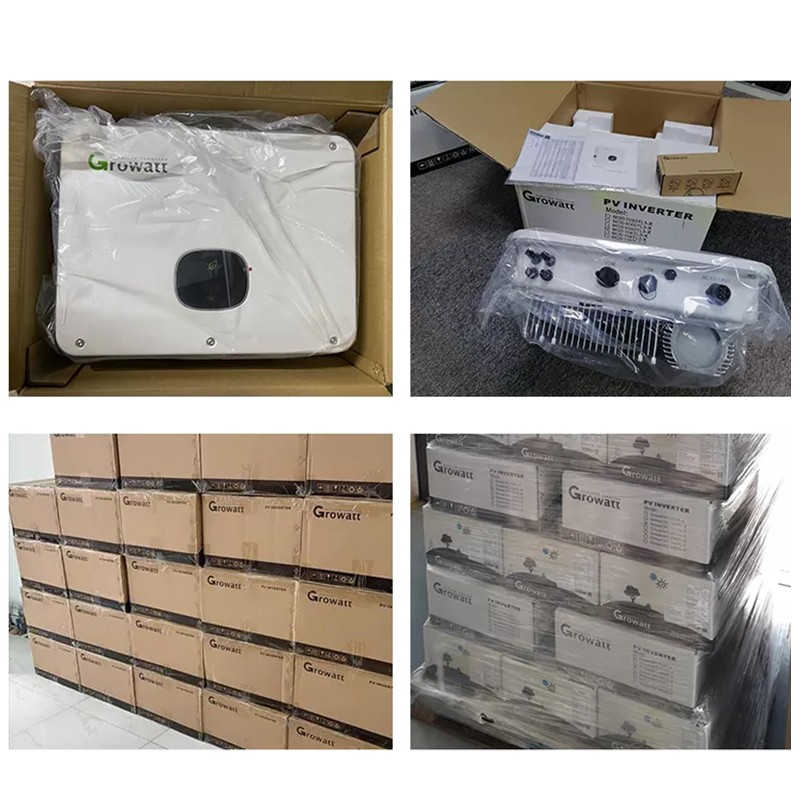

Packing

1.Standard exporting Wooden and Carton Box

2.The packaging can be customized according to the needs of different customers

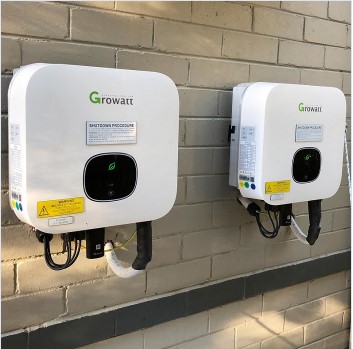

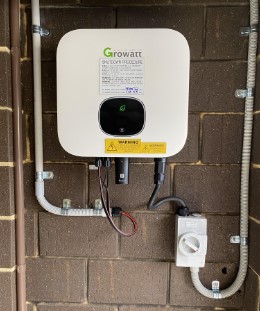

Projects

- Future proof battery ready

- Touch key and OLED display

- Compact design for one person installation



Hot Tags : On grid solar inverter Single Phase solar inverter solar inverter for home use 2500W 3000W 5000W 6000W solar inverter Koodsun solar inverter High efficiency inverter
